TC-A Large Package Cloth Inspection Machine
Short Description:
The fabric inspection machine is suitable for high-grade fabrics and special texture fabrics of the textiles mill, yarn-dyed fabric mill and dyeing mill. Under the traditional operation way it is easy to produce quality problems such as wrinkles, take off etc.This machine can improve all these above.
Application:
The fabric inspection machine is suitable for high-grade fabrics and special texture fabrics of the textiles mill, yarn-dyed fabric mill and dyeing mill. Under the traditional operation way it is easy to produce quality problems such as wrinkles, take off etc.This machine can improve all these above.
Technical Feature:

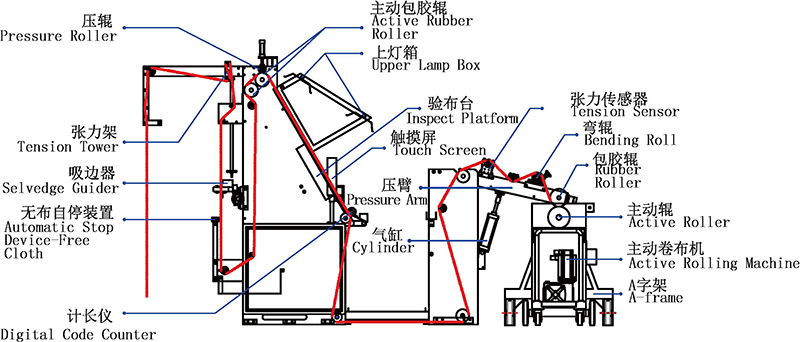

Drivers A-shaft rotation by power device to fabric synchronously constant tension test (tension control using winding diameter according to ratio decreasing)
1、PLC complete control operation process of the machine
2、Stepless speed-regulation control to inspecting/winding speed
3、Automatic edge alignment and cloth winding is tidy, corrective adopts hydraulic, accuracy of edging ±5mm winding
4、Imported electronic code counter(can be modified, fixed length, meter counting, code and accumulative function, and can display inspecting /winding speed)
5、Automatic stop device when without cloth
6、Connect with computer function is available
Technical Parameters:
| 1、Effective width | 1800mm |
| 2、Dimension | 4480(L)*2650(W)*2780(H)mm |
| 3、Power of main motor | 4.5KW |
| 4、Weight | 2900KG |
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European ,India,Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil…and so on.
Generally,our warranty is one years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
Inquiry – quotation – communication – order confirming – deposit payment – production – testing and debugging – balance payment-packing – delivery – customer receiving – after service.
The product is shipped with an operating instructions and video of English version.
With the continuous improvement of the functional requirements of textile finishing machines in various countries, the structures and functions of our fabric inspection machines, fabric slitting machines, and fabric folding machines are constantly being adjusted.
