RH-A02 Auto Edge-alignment Fabric Inspection Rolling Machine

Short Description:

It is suitable for inspecting and rolling all kinds of finished grey cloths(including knitted and shuttle-woven grey cloths)


Product Detail

Textile Finishing Machine Manufacturer

Product Tags

Product Overview
Details Images
Our Advantages
This machine is suitable for inspection,rolling,measurement and rolling of knitted cloth.
Equipped with a magic eye for automatic edge tracing.
It has a specially designed eletronic tension control,adjustment device for rolling and unreeling,and is attached with cloth adjusting device,which can flatten the edges of cloth.
Equipped with variale frequency speed control for this machine.

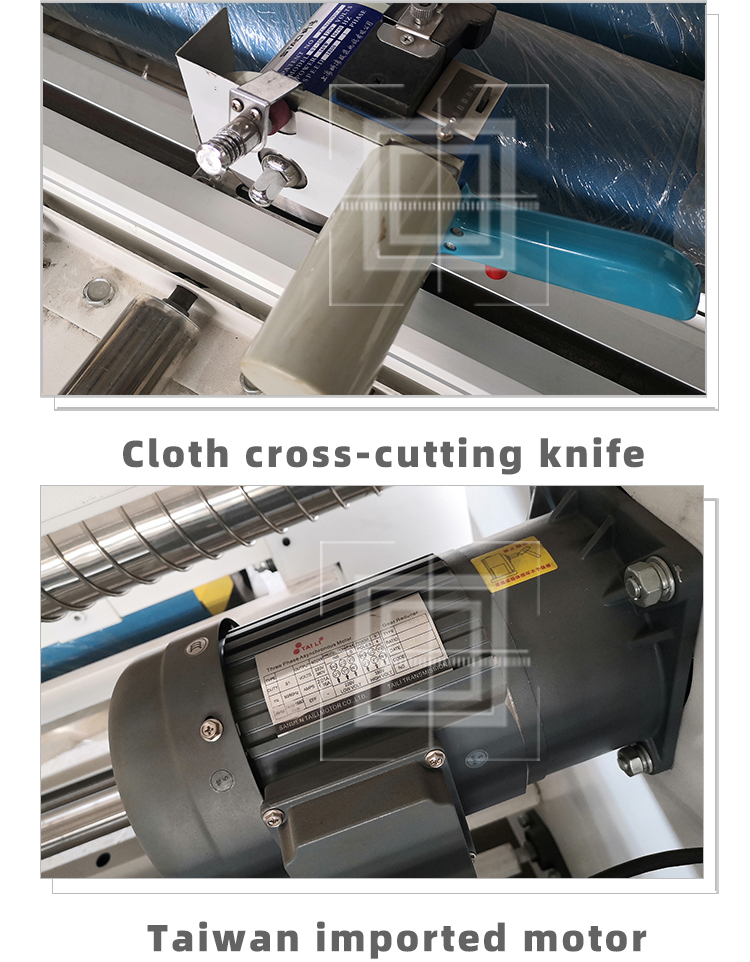

This machine can be equipped with a cross-cutting machine and rollers for easy loading and unloading of fabrics.
FEATURES AT A GLANCE




Technical Features:

1、Suitable for inspecting and rolling all kinds of finished grey cloths(including knitted and shuttle-woven grey cloths)

2、Infrared photoelectronic automatic oil hydraulic edge aligning, cylindrical rolled cloth is in good trim

3、Rolling tension is adjustable according to deferent cloth categories, suitable for rolling loose reels

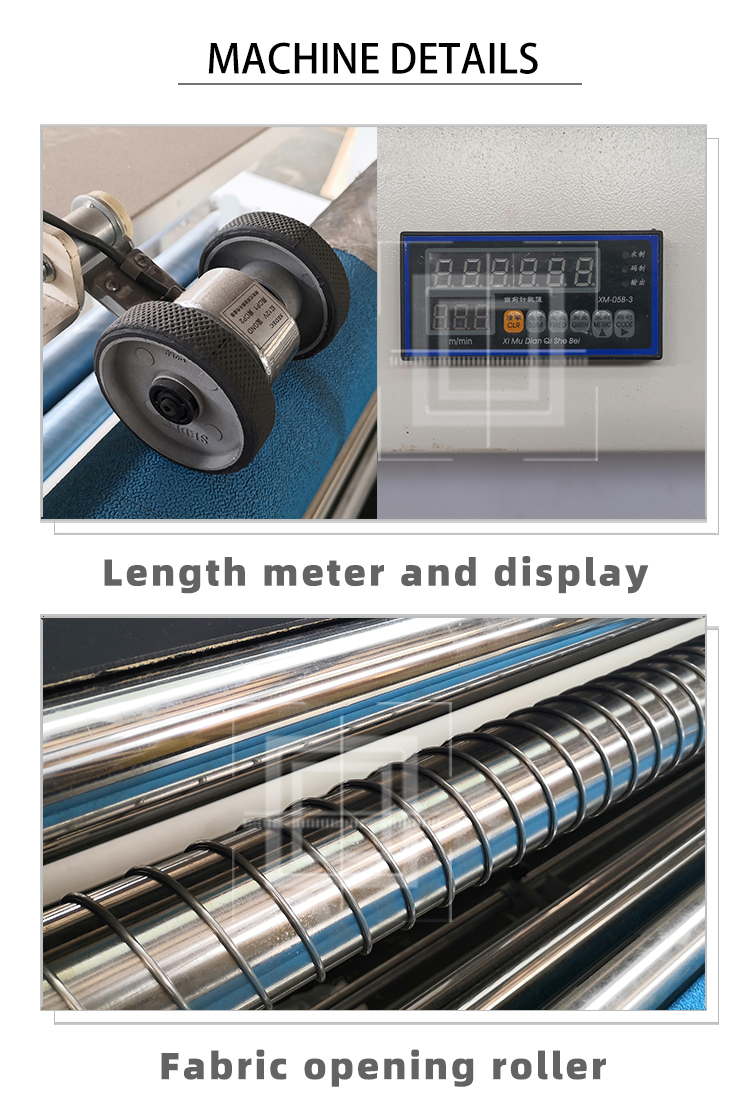

4、Equipped with a digital code counter or electronic length counter, precisely counts cloth length

5、Variable frequency speed control, positive and reverse revolve and infinitely variable speeds, suitable for reeling and unreeling cloth inspection

6、Extra optional cutter and electronic pound selection devices are provided for different technical requirements

7、Specifications are selectable from 1800mm to 3800mm

Technical Parameters:

1、Working width 1800mm~3800mm
2、Max.Rolling Diameter 350mm
3、Cloth inspection speed 0~80m/min
4、Power Main motor 1.5KWEdge-aligning motor 0.75KW
5、Edge-aligning accuracy ±5mm
6、Dimension 1300(L)*2500(W)*1950(H)mm
Company Profile

Established in 2002, Suzhou ReHow Machinery Manufacturing Co., Ltd. is a joint venture which is specialized in the research and development of textile printing and dyeing machinery, integrating manufacture, sale and after-sales service as a whole. Our company has been able to independently develop and manufacture products as per various specifications, for example, sewing machines with the automatic folio function, tension-free cloth inspecting machines, cloth winding machines, scotching machines,slitting machines,narrow computer jacquard weaving machine and every kind of dyeing and finishing machine. The tenet of our company is “competition is the power of us,quality is the assurance of us, and service is the basis of us!” Our company sincerely hopes to gain support from clients.

微信图片_20220729173530

Packing
FAQ
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European ,India,Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil…and so on.
6. How about your warranty?
Generally,our warranty is one years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry – quotation – communication – order confirming – deposit payment – production – testing and debugging – balance payment-packing – delivery – customer receiving – after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
