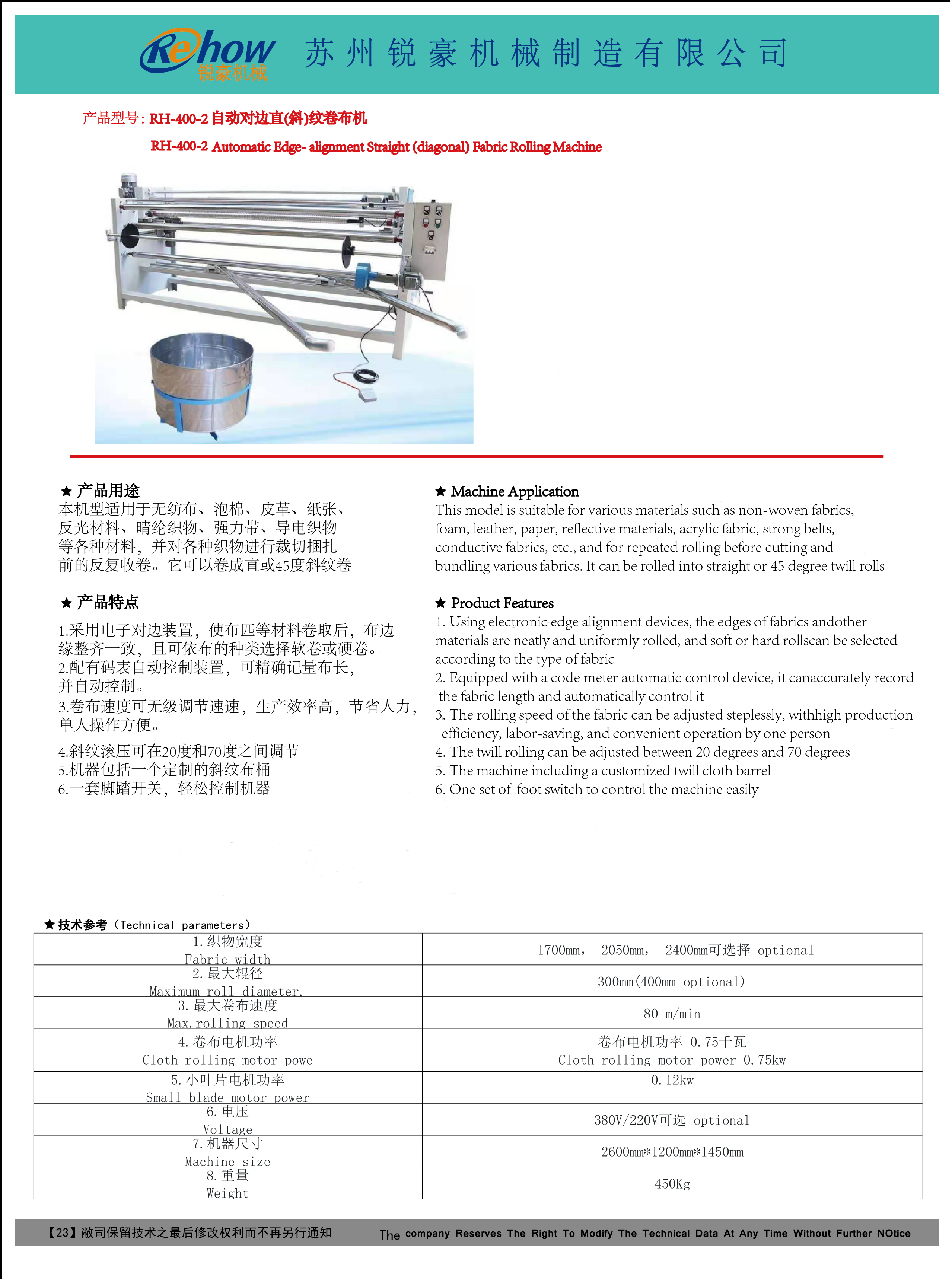

RH-400-2 Automatic Edge- alignment Straight (diagonal) Fabric Rolling Machine

Short Description:

This model is suitable for various materials such as non-woven fabrics, foam, leather, paper, reflective materials, acrylic fabric, strong belts, conductive fabrics, etc., and for repeated rolling before cutting and bundling various fabrics. It can be rolled into straight or 45 degree twill rolls…




  • FOB Price: US $3500 - 19,999 / Piece
  • Min.Order Quantity: 10 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Textile Finishing Machine Manufacturer

    Product Tags

    Machine Application

    This model is suitable for various materials such as non-woven fabrics, foam, leather, paper, reflective materials, acrylic fabric, strong belts, conductive fabrics, etc., and for repeated rolling before cutting and bundling various fabrics. It can be rolled into straight or 45 degree twill rolls

    Product features

    1. Using electronic edge alignment devices, the edges of fabrics and other materials are neatly and uniformly rolled, and soft or hard rolls can be selected according to the type of fabric

    2. Equipped with a code meter automatic control device, it can accurately record the fabric length and automatically control it

    3. The rolling speed of the fabric can be adjusted steplessly, with high production efficiency, labor-saving, and convenient operation by one person

    4. The twill rolling can be adjusted between 20 degrees and 70 degrees

    5. The machine including a customized twill cloth barrel

    6. One set of  foot switch to control the machine easily

    Technical parameters

    1, Fabric width 1700,2050,2400mm (Can be customized)
    2, Maximum roll diameter: 300mm (400mm optional)
    3, Max. rolling speed 80 m/min
    4,  Cloth rolling motor power 0.75 kw
    5, Small blade motor power 0.12 kw
    6, Voltage 380V/220V optional
    7, Machine size 2600mm *1200mm* 1450mm
    8, Weight 450KG
