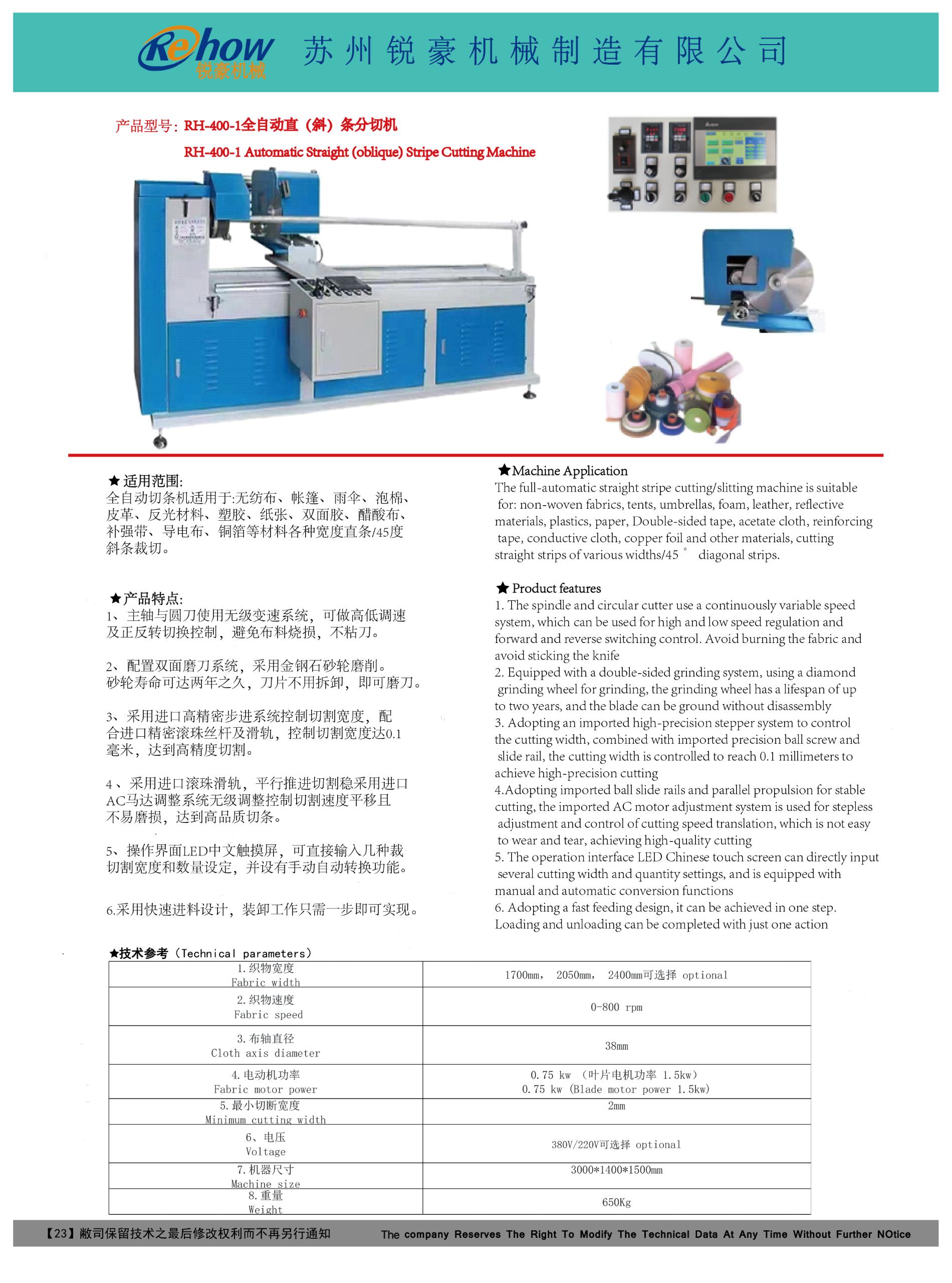

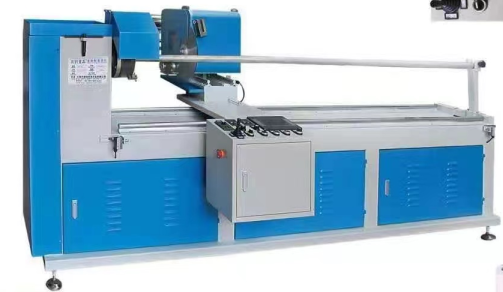

RH-400-1 Automatic Straight (oblique) Stripe Cutting Machine
Short Description:
Machine Application
The full-automatic straight stripe cutting/slitting machine is suitable for: non-woven fabrics, tents, umbrellas, foam, leather, reflective materials, plastics, paper, Double-sided tape, acetate cloth, reinforcing tape, conductive cloth, copper foil and other materials, cutting straight strips of various widths/45 ° diagonal strips. It is an ideal choice for industries such as clothing, bags, shoes, clothing materials, reflective material factories, tent factories, umbrella factories, transformer factories, and electronics factories.
Product features
1. The spindle and circular cutter use a continuously variable speed system, which can be used for high and low speed regulation and forward and reverse switching control. Avoid burning the fabric and avoid sticking the knife
2. Equipped with a double-sided grinding system, using a diamond grinding wheel for grinding, the grinding wheel has a lifespan of up to two years, and the blade can be ground without disassembly
3. Adopting an imported high-precision stepper system to control the cutting width, combined with imported precision ball screw and slide rail, the cutting width is controlled to reach 0.1 millimeters to achieve high-precision cutting
4.Adopting imported ball slide rails and parallel propulsion for stable cutting, the imported AC motor adjustment system is used for stepless adjustment and control of cutting speed translation, which is not easy to wear and tear, achieving high-quality cutting
5. The operation interface LED Chinese touch screen can directly input several cutting width and quantity settings, and is equipped with manual and automatic conversion functions
6. Adopting a fast feeding design, it can be achieved in one step. Loading and unloading can be completed with just one action
Technical parameters
1, Fabric width | 1700,2050,2400mm (Can be customized) |
2, Fabric speed | 0-800 rpm |
3, Cloth axis diameter | 38 mm |
4, Fabric motor power | 0.75 kw (Blade motor power 1.5kw) |
5, Minimum cutting width | 2mm |
6, Voltage | 380V/220V optional |
7, Machine size | 3000*1400*1500mm |
8, Weight | 650Kg |
