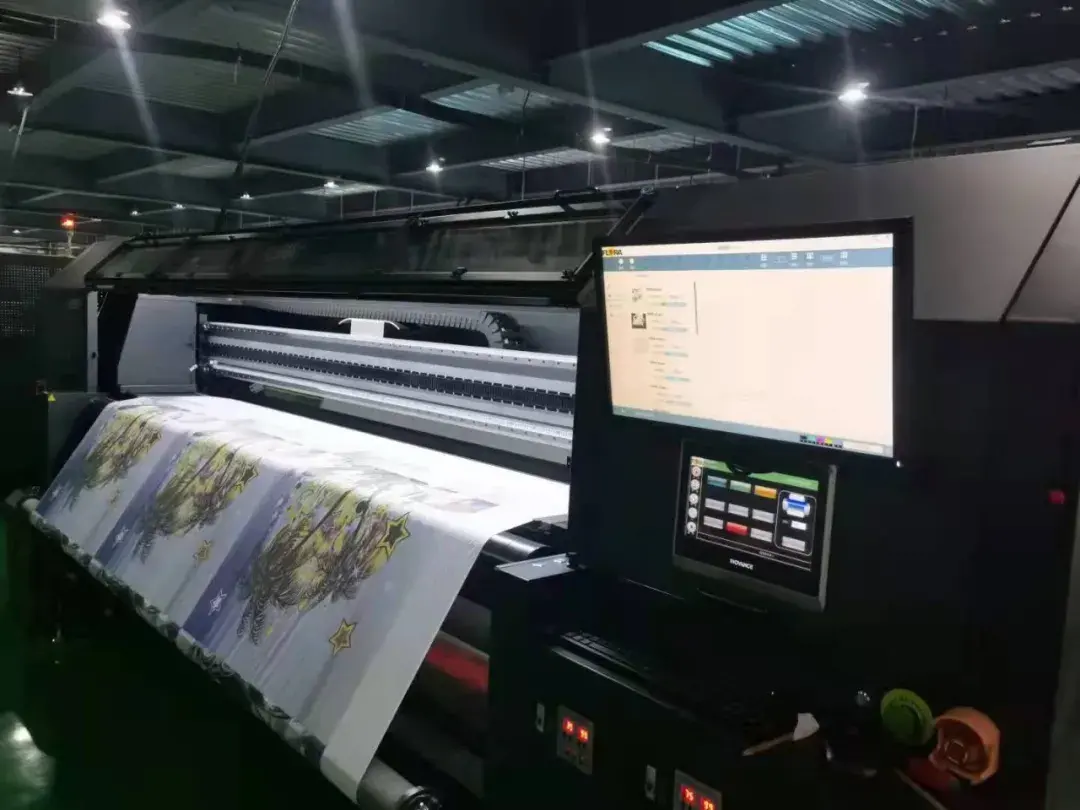

RH-1918S Digital printing machine

Short Description:

Digital printing machine



Digital printing machine is an industry of large-format printers. For example, plotters are similar in the CAD field, and their ink characteristics are water-based dispersion inks. It is printed on transfer paper, and then transferred to cloth (man-made chemical fiber cloth) by high temperature, mainly used in printing and dyeing of clothing cloth.


  • FOB Price: US $3500 - 19,999 / Piece
  • Min.Order Quantity: 10 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Textile Finishing Machine Manufacturer

    Product Tags

    Functions and Features
    1. Genuine Epson S3200 industrial grade print head

    The nozzle resolution is 600dpi (2 columns), and the variable ink drop technology realizes multi-gray printing, so that high-speed and high-quality printing can kill two birds with one stone. The footprint is smaller, and it better corresponds to the Single-Pass printing ink circulation function, which makes the ink drop ejection more stable.

    2. Imported THK silent guide rail
    Adopt Japanese THK ultra-quiet SS+ grade linear guide rail, low noise, high precision and durable.

    3. Strengthen the beam
    The thickened steel beam is used for multiple heat treatment aging guarantees, and the accuracy error of the beam is controlled at 0.03mm to ensure that the trolley runs with higher precision.

    4. Industrial servo drive reducer
    The paper take-up and release system adopts an industrial-grade servo-driven reducer, which is fast, high-precision, and more stable for paper take-up and delivery.

    5. Fully enclosed suction platform
    The self-developed fully enclosed suction platform design has high precision and good sealing performance, which can meet the printing needs of thinner paper with lower grammage, and the printing platform is not prone to problems such as drumming and wrinkling paper.

    6. Pneumatic rubber roller lifting structure
    Pneumatic rubber roller lifting structure ensures balanced pressing force and no loss of function for long-term use. The paper guide roller of the whole machine is a large rubber roller, which is easy to replace, disassemble, install and maintain later.

    7.15L super large continuous ink supply system
    The 15-liter super large continuous ink supply system, combined with the negative pressure ink circuit, can completely achieve long-term stable printing without continuous ink and ink flying.

    8. Multi-grayscale output
    Epson’s unique VSDT (Variable Droplet Technology) can freely control the size of the jetted ink droplets, thereby reducing the graininess of the picture, presenting more picture details, smooth color transition, and high saturation

    Technical parameters and specifications

    Technical parameters and specifications
    Machine Model RH-1918S
    Print head type Epson S3200 print head
    Quantity 12
    Attributes Automatic cleaning, automatic flash spray moisturizing function
    Printing speed 300X600dpi 1pass: 1100m2/h
    300X1200dpi 2pass: 620m2/h

    300X1800dpi 3pass: 410m2/h

    300X2400dpi 4pass: 310m2/h
    Inkjet Ink Type Dye Sublimation Ink
    color CYMK
    Effective width Feed width ≤ 1950mm, effective screen width ≤ 1900mm
    Printing media Thermal transfer paper
    Media Transport Rubber Roller Mode
    Drying method External intelligent air-heat integrated dryer
    Moisturizing mode Fully sealed automatic moisturizing and cleaning
    RIP software Support Maintop6.1, photoprint, ONYX, NeoStampa and other software, standard configuration Feidie deeply customized version RIP
    Picture format JPG, TIF, PDF, etc.
    System configuration Operating system win7 64 bit Win10 64 bit
    Hard disk 500G or more (solid-state hard disk is recommended)
    Memory Running memory 16G
    Graphics card AT independent 4G memory
    CPU i7 processor
    Transmission interface USB3.0
    Standard configuration Intelligent drying system, integrated three-color light alarm system, continuous ink supply system, 10,000-meter unwinding, negative pressure circulation device, magnetic levitation motor module
    Working environment temperature 18℃-30℃
    Humidity 35%-65%
    Power requirements Input voltage 220V AC 100A
    Printing system 7kw
    Drying system 14.5kw
    Machine size Appearance size 4000*1000*1870
    10,000-meter retractable base 2575*1061*1115
    Package size Printing unit: 4150*1370*2140mm Base unit: 2700*1100*1365mm
