Products

  • RH-400-2 Automatic Edge- alignment Straight (diagonal) Fabric Rolling Machine

    RH-400-2 Automatic Edge- alignment Straight (diagonal) Fabric Rolling Machine

    This model is suitable for various materials such as non-woven fabrics, foam, leather, paper, reflective materials, acrylic fabric, strong belts, conductive fabrics, etc., and for repeated rolling before cutting and bundling various fabrics. It can be rolled into straight or 45 degree twill rolls…



  • RH-400-1 Automatic Straight (oblique) Stripe Cutting Machine

    RH-400-1 Automatic Straight (oblique) Stripe Cutting Machine

    1)RH-400-1 Automatic Straight (oblique) Stripe Cutting Machine

    Machine Application

    The full-automatic straight stripe cutting/slitting machine is suitable for: non-woven fabrics, tents, umbrellas, foam, leather, reflective materials, plastics, paper, Double-sided tape, acetate cloth, reinforcing tape, conductive cloth, copper foil and other materials, cutting straight strips of various widths/45 ° diagonal strips. It is an ideal choice for industries such as clothing, bags, shoes, clothing materials, reflective material factories, tent factories, umbrella factories, transformer factories, and electronics factories.

    Product features

    1. The spindle and circular cutter use a continuously variable speed system, which can be used for high and low speed regulation and forward and reverse switching control. Avoid burning the fabric and avoid sticking the knife

    2. Equipped with a double-sided grinding system, using a diamond grinding wheel for grinding, the grinding wheel has a lifespan of up to two years, and the blade can be ground without disassembly

    3. Adopting an imported high-precision stepper system to control the cutting width, combined with imported precision ball screw and slide rail, the cutting width is controlled to reach 0.1 millimeters to achieve high-precision cutting

    4.Adopting imported ball slide rails and parallel propulsion for stable cutting, the imported AC motor adjustment system is used for stepless adjustment and control of cutting speed translation, which is not easy to wear and tear, achieving high-quality cutting

    5. The operation interface LED Chinese touch screen can directly input several cutting width and quantity settings, and is equipped with manual and automatic conversion functions

    6. Adopting a fast feeding design, it can be achieved in one step. Loading and unloading can be completed with just one action

    Technical parameters

    1, Fabric width 1700,2050,2400mm (Can be customized)
    2, Fabric speed 0-800 rpm
    3, Cloth axis diameter 38 mm
    4, Fabric motor power 0.75 kw (Blade motor power 1.5kw)
    5, Minimum cutting width 2mm
    6, Voltage 380V/220V optional
    7, Machine size 3000*1400*1500mm
    8, Weight 650Kg
  • RH-400-3 Automatic diagonal Fabric Folding Stitching Machine

    RH-400-3 Automatic diagonal Fabric Folding Stitching Machine



    RH-400-3 Automatic diagonal Fabric Folding Stitching Machine



    Machine Application



    This machine is a new type of folding and splitting sewing machine developed by our company based on market demand. It is used in conjunction with twill fabric rolling machines and strip cutting and binding machines, replacing traditional knife sewing machines that manually fold and then sew fabric, greatly improving work efficiency. Suitable for folding, cutting, and splitting of various fabrics, non-woven fabrics, cotton, leather, paper, and other materials



    Technical parameters



    1, Fabric width 1700,2050,2400mm (Can be customized)
    2, Sewing speed  0-480 meters/hour
    3,  Edge-alignment motor power 1.5 kw
    4, Machine size Folding frame 3100*900*1750mm
      Sewing machine 2200*1400*1450mm
    5, Voltage 380V/220V optional
    6, Weight 750Kg



  • Beam/warp beam

    Beam/warp beam

    The weaving beam/warping beam is mainly composed of shaft core, disk, fixed ring, shaft head, gear and other components. The main standards are:

    1. The overall interchangeability is strong: the same batch of weaving shafts produced, all parts can be interchanged, which is convenient for users to assemble, repair and accessories
    2. Accuracy requirements after assembly: the runout of the shaft plate to the shaft core is <0.8mm, and the vertical runout of the disc is less than 0.5/1000

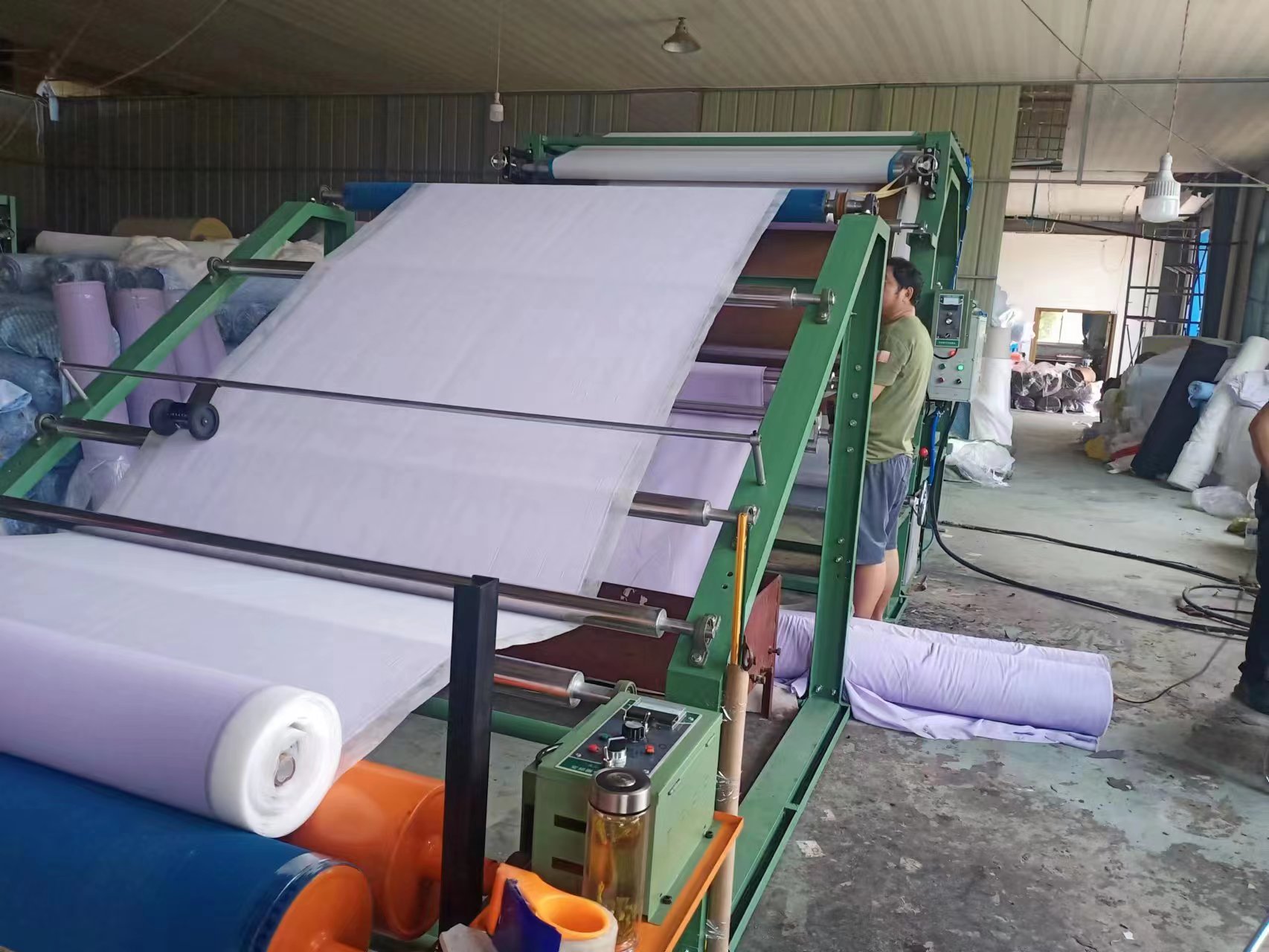

  • RH-610 PUR hot melt adhesive compound machine

    RH-610 PUR hot melt adhesive compound machine

    PUR hot melt adhesive compound machine is a polymer that does not require solvents, does not contain water, and is 100% solid meltable. It is solid at room temperature, and it is heated and melted to a certain extent to become fluid and viscous. Liquid adhesive, a device that coats PUR hot melt adhesive on the substrate, and then combines another substrate with the coated substrate.

    热溶胶复合机22





  • RH-1918S Digital printing machine

    RH-1918S Digital printing machine

    Digital printing machine



    Digital printing machine is an industry of large-format printers. For example, plotters are similar in the CAD field, and their ink characteristics are water-based dispersion inks. It is printed on transfer paper, and then transferred to cloth (man-made chemical fiber cloth) by high temperature, mainly used in printing and dyeing of clothing cloth.

  • Automatic screen printing machine

    Automatic screen printing machine

    Main product application industries: PCB printing, photoelectric display, thick film circuit, circuit on film, paper packaging, glass decoration, panel window, clothing printing, solar photovoltaic, rice paper, couplets, non-woven fabrics, clothing industry, etc.
    Main features of screen printing machine:
    Advantage 1: Printing with high precision and high stability

    1. Ten years of use experience, mature and stable performance;screen printing machine

    2. Servo tape system, high printing accuracy;
    3. Servo positioning system, error correction;
    4. The tension control system ensures the tension balance of different materials, advances at a uniform speed during printing, and cooperates with color registration;
    5. The printing head drive is driven by one set of servo for each color, and the high-precision operation is more stable;
    6. High-configuration electrical appliances to ensure high performance and high stability of the machine;
    7. The program system is stable and mature.
    the
    Advantage two: powerful
    1. Simultaneous printing function on the front and back sides, corresponding to both sides, accurate accuracy! allow! allow!
    2. Slice printing function;
    3. Applicable to various packaging materials, special materials and special processes. Such as all kinds of film, hat brim tape, snow gauze tape, round rope tape, foaming effect, etc., the effect of white characters on black background is good;
    4. Good drying effect. The oven is long, the infrared lamp, the imported heating core and the heating plate are integrated, and the effect of the thick plate is good;
    5. Add and subtract the machine head freely. That is to say, the two-color machine can be installed as three-color, four-color, five-color machine, etc.
    the
    Advantage three: easy to operate
    1. Fine-tuning positioning of the screen frame, high precision, easy to operate
    2. The screen frame can be lifted and lowered freely, which is convenient for operation and cleaning.
    3. The screen can be fine-tuned during the printing process without stopping
    4. Arbitrarily set the parameters such as printing length, speed, and number of tapes
    5. Many intelligent operation functions, easy to operate

    Advantage 4: High-performance employee protection device against accidental injury
    Advantage 5: Durable and low maintenance rate

    Machine part parameters:
    1. Printing table area: 10-2000MM
    2. Printing area: 280*2000MM
    3. Power: 380V 70A 8KW
    4. Size: 7100*1200*1500MM
    5. Weight: 3500KG

  • RH-X8BZ Needle punch cloth cutting rewinding machine

    RH-X8BZ Needle punch cloth cutting rewinding machine

       FAQ 1. What’s the MOQ? MOQ is 1 set. but for your reference, one 40HQ can load 2 sets, that will save you a lot of sea freight. 2.What’s the after sales? Our products’ warranty is for 12 months. after that, we can still supply technical support and original spare parts. 3. What’s your lead time? usually within 20 work days. 4.Are you interested in dealership with local company? Yes, we are ...
  • RH-2100C-02 CNC mesh belt code machine

    RH-2100C-02 CNC mesh belt code machine

    This machine is suitable for textile factories, printing and dyeing factories, for some fabrics that can not be crushed, raised, scratched, etc., especially for thin and elastic fabrics; using tension-free mesh-type code cloth to solve traditional codes Insufficient cloth machine.









  • RH-2100C-01 NC automatic fabric folding and plaiting machine

    RH-2100C-01 NC automatic fabric folding and plaiting machine

    The machine is suitable for textile mills, thefabric folded onto the pallet, tie the packing tape, eliminating the printing and dyeing plant turning process. Dyeing factory has the next procedure,but also the code cloth.











  • VS-B Vertical Open Width Cutting Machine

    VS-B Vertical Open Width Cutting Machine

    Technical Features ◆ It is suitable for fast cutting of cotton, chemical fiber and other cylindrical fabrics; ◆ Vertical feeding, both wet and dry cloth can be opened; ◆ Reduce tension, eliminate wrinkles and pinch marks; ◆ Frequency conversion control, easy to operate    FAQ 1. What’s the MOQ? MOQ is 1 set. but for your reference, one 40HQ can load 2 sets, that will save you a lot of sea freight. 2.What’s the after sales? Our products’ warranty is for 12 months. after that, we can still su...
  • RH-082 Air Jet Loom

    RH-082 Air Jet Loom

    With a wide variety of adaptability, it can weave staple fibers, filaments and many kinds of fancy yarns, such as strong twisted yarns, elastic yarns, chenille yarns and various textured yarns, especially in weaving high-count and high-density fabrics. It has the advantages of low cost of use, long trouble-free working time, powerful functions and high cost performance.
