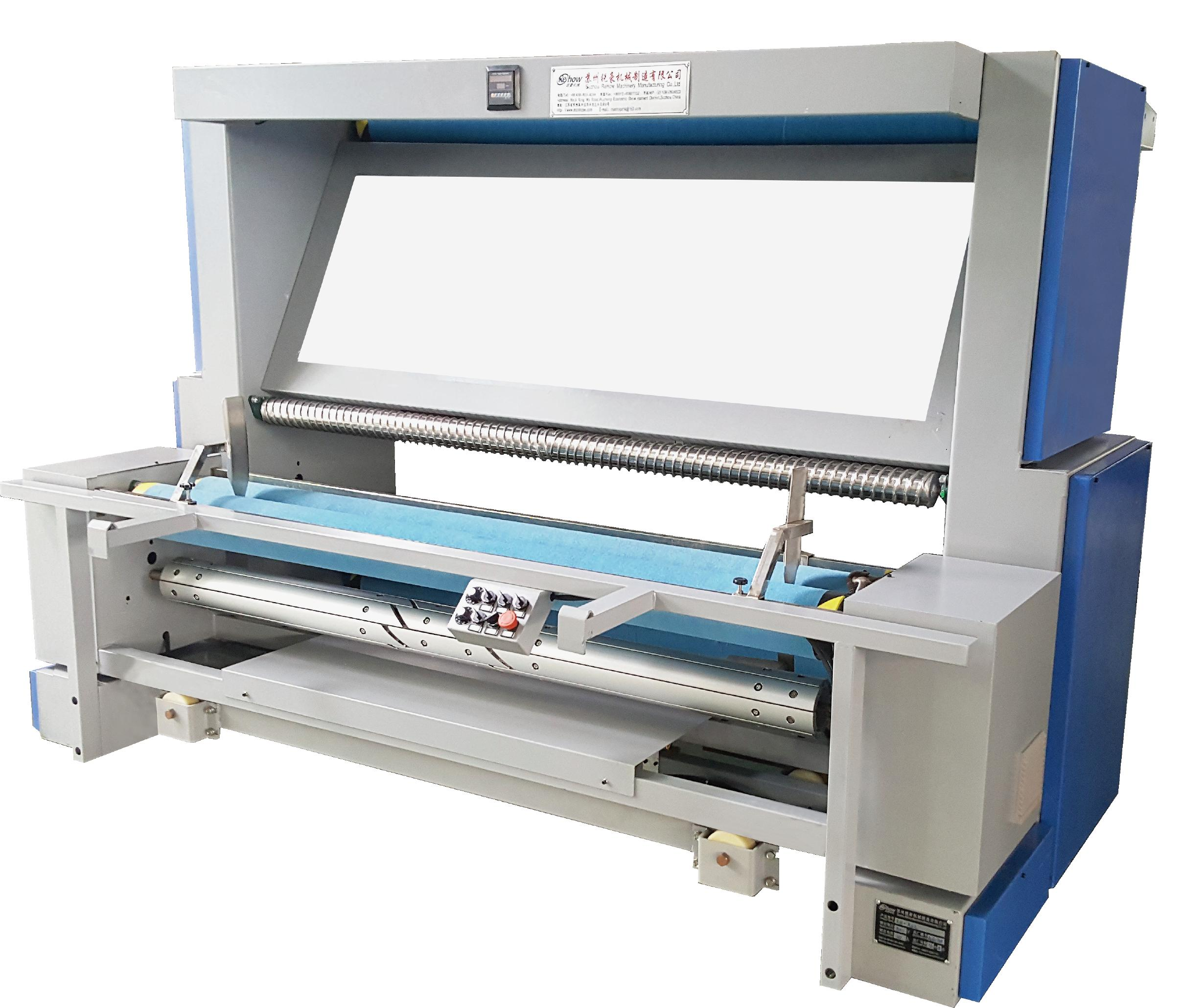

RHA02 Automatic Cloth Inspection and Rolling Machine
1. Cross-scroll fades out to one side. Cross-scroll fades out to one side. This is because the surface of the cloth is tight and one side is loose and arcs. Do not place the bin at an angle. This is not a solution. Of course, there is also the factor of reducing winding tension.
2. The action of the upper traction makes the cylindrical fabric swing up and down. This is because the lower end of the expansion rod is not fixed to the seat ring of the expansion rod, and the upper end swings upward, while the cloth swings left and right. on traction. The solution is to firmly fix the expansion rod and its base.
3. The roller is on the offset side of the upper paper roller: If the cylindrical cloth is always offset on one side of the upper paper roller, installing the expander will offset the top of the expansion rod from that side and make it not centered meeting. The solution is to adjust the expansion rod to the center position.
4. Uneven and uneven cloth surface: There are many reasons for the uneven cloth surface. One of the reasons is that the expansion rod is not fixed with woven fabric. When the four spreader rods and the woven fabric are in constant contact, the tube fabric stretches and the weft tension varies slightly across the multiple shuttles. It can also be threaded through the expansion rod, especially if the weft is not on the casing. Inflate and adjust. If the warp is too tight and the tension is relatively tight, pull the over-tight warp from the ring gauge to adjust the warp balance. The four extension rods maintain constant contact with the fabric surface, which expands and flattens the fabric surface.
Automatic Cloth Inspection and Rolling Machine Technical Features:
1. Suitable for inspecting and rolling all kinds of finished gray clothes (including knitted and shuttle-woven gray clothes)
2. Infrared photoelectronic automatic oil hydraulic edge aligning, cylindrical rolled cloth is in good trim
3. Rolling tension is adjustable according to deferent cloth categories, suitable for rolling loose reels
4. Equipped with a digital code counter or electronic length counter, precisely counts cloth length
5. Variable frequency speed control, positive and reverse revolve and infinitely variable speeds, suitable for reeling and unreeling cloth inspection
6. Extra optional cutter and electronic pound selection devices are provided for different technical requirements
7. Specifications are selectable from 1800mm to 3800mm
Technical Parameters
1. Working width 1800mm~3800mm
2. Max. Rolling Diameter 350mm
3. Cloth inspection speed 0~80m/min
4. Power Main motor 1.5KW
Edge-aligning motor 0.75KW
5. Edge-aligning accuracy ±5mm
6. Dimension 1300(L)*2500(W)*1950(H)mm
Compared with ordinary cloth inspection and rolling machines, rehow production of cloth inspection and rolling machines, REHOW automatic cloth rolling and packaging lines are more competitive. Automation refers to the production management through machines after no one is directly involved, and the expected operations are met through automatic detection, information processing and analysis and judgment.
The application of industrial control automation technology mainly realizes the detection of instruments and meters through control and computer information technology, which can better reduce the corresponding detection means, and meet its output and reduce energy consumption through control and adjustment means. Due to the large-scale application of automation technology in the textile industry, it can change the production energy efficiency of enterprises after technological innovation matures.
REHOW has an efficient and professional team dedicated to providing customers with high-quality consultation and after-sales service. REHOW provides various types of textile machinery: raising machine, cloth inspection machine, packaging machine, coiling machine, slitting machine, automatic half-folding reel machine, cross-cutting machine, ribbon weaving machine, loom, etc. If you are interested in us, please contact us now! REHOW has always been adhering to the business philosophy of “integrity, quality, innovation, and win-win” to create a better future hand in hand with customers.
