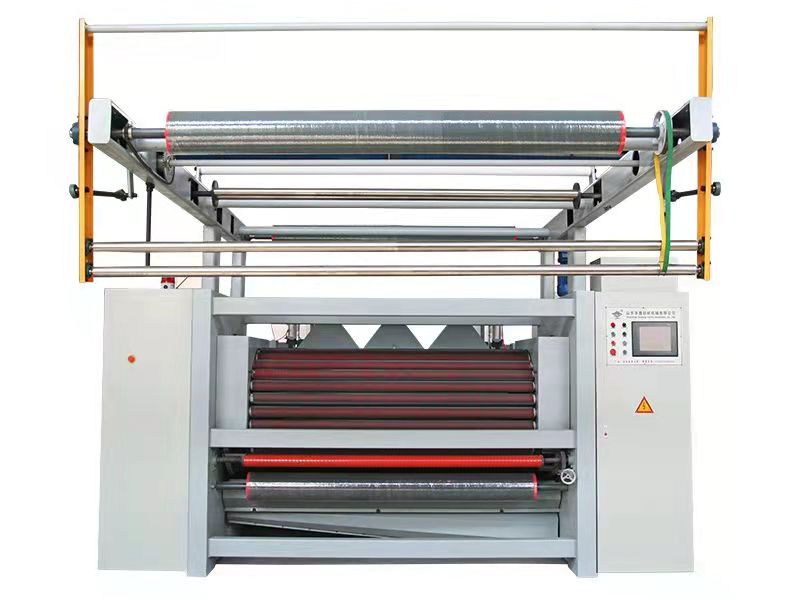

RH-QMJ Fabric Raising Machine

The RH-QMJ Raising machine is widely used in many areas. It is suitable for the raising of the various fabrics like cotton, blanket and their blends, also suitable for wide width decorating fabric, curtain etc.

主图1

Features of fabric raising machine:

1. Highly mechatronic equipment with refined design, simple maintenance and convenient operation

2. Microcomputer control, touch screen display, all-round self-diagnosis function

3. The cylinder, the clockwise, counterclockwise rollers and the in-and-out cloth rollers are all driven by a reducer with frequency conversion speed regulation

4. The cloth speed, raising force and cloth tension can be adjusted steplessly in a wide range, which meets the raising requirements of various kinds of fabrics

5. The specially designed belt self-tensioning device can make up for the elongation of the belt, keep the belt tension constant, and make the raising roller drive more reliable

6. The cleaning roller adopts brown brush

7. Maintenance-free roller bearings are used for the raising roller bearing, which has stable operation and long service life

8. The special cylinder positioning device can easily grind the needle and change the card clothing on the machine

9. High degree of automation and intelligence

10. Iron wire skins are used for entering and leaving the cloth rollers, and rough skins are used for the doffing rollers and the cloth pulling rollers

11. The whole machine is equipped with a driving prompt and alarm function

General steps for fabric raising machine:

Preparing the fabric:

The fabric is first checked for any defects, and then it is stretched onto a tenter frame to ensure that it is flat and tight.

Feeding the fabric:

The fabric is then fed into the machine through a series of rollers, which control the tension and speed of the fabric.

Raising process:

Once the fabric is inside the machine, a series of metal rollers with small teeth rotate at a high speed. These rollers brush the surface of the fabric and raise the fibers, creating a soft and fuzzy texture.

Trimming:

After the raising process is complete, the fabric is trimmed to remove any loose fibers or excess fuzz.

Inspection:

The fabric is then inspected to ensure that it meets the desired quality standards.

Finishing:

Finally, the fabric may undergo additional finishing processes, such as steaming, pressing, or dyeing, before it is ready to be shipped to customers.

Conclusion

Fabric raising machines are a valuable tool in the textile industry, providing a way to create soft, fluffy textures on a variety of fabrics. Whether used for clothing, upholstery, or bedding, raised fabrics offer improved performance and a luxurious feel.   While they can be expensive and require skilled operators, fabric raising machines are an essential part of the textile manufacturing process.

REHOW provides the textile industry machines to the whole world, helps them to improve the efficient, decrease the labor costs. REHOW offers numerous types of textile machinery: fabric inspection machine, fabric cutting machine,  beam truck, trolley lift, fabric rolling machine etc. If you are interested in us, please contact us now!
