Fabric cutting machine

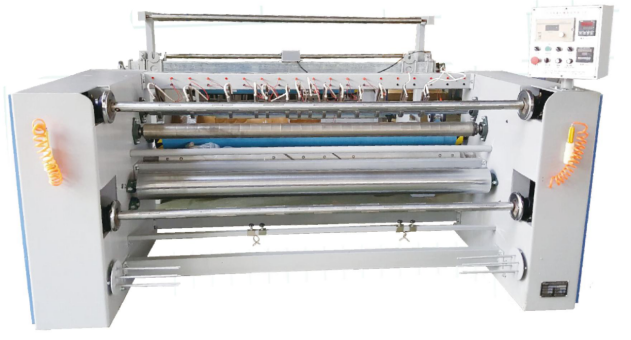

 57488E28-BB96-4a28-958F-7C1DCEBBD7F1

The eager slitting machine uses a heating tube to heat the cutter to divide the running fabric into the required size. Its advantages are: the cut fabric has no loose mouth, no burnt edge, and the fabric is hot and cold cutting and slitting machine, so as to achieve the extremely high labeling effect.

Operation points:

1. Adjust the knife. Adjust the distance of the hot cutter according to the needs, use the hex wrench to loosen the screw on the knife holder, and then adjust the knife after the knife holder is loose. When adjusting the knife, first determine the cutter on the right according to your needs position (facing the direction of the machine), and then move the cutter to the left according to the width of the cut according to the scale (based on the cutter with the thermocouple as the starting point).

2. Heat up. After adjusting the position of the knife, the fabric is eagerly cut and the temperature is raised according to the fabric to be cut. At this time, the temperature point should be set according to the melting point of the fabric and the cutting speed, preferably not exceeding 400 degrees. (Wait for about ten minutes, Jiangsu hot cutting slitting machine, at this time the hot knife should be raised)

3. Put the fabric. Place the fabric to be cut in the cloth column behind the machine. If it is a piece of fabric, it needs to pass through the top of the cloth fence to increase the stretching force and achieve the compactness of the cloth. Rolled fabrics can be placed directly in the cloth fence (or can be freely used according to different fabrics). Then pass through the upper two feeding racks and then go down through the tension rack at a right angle of 90 degrees. (Before this, the moving trolley should be placed in the middle position, and the blade of the slitting machine should be eagerly cut, just operate the left and right buttons on the machine)

4. Wear fabrics. After the fabric on the back trolley is placed, it passes through the movable rod under the trolley, passes through the rubber-covered roller with pressure roller, goes out from the bread under the aluminum expansion, passes through the stainless steel roller, and directly enters the top of the cutter bar. When it is pulled to the position of the knife bar, put down the cutter that has been heated to the temperature you want. At this time, you can turn on the machine to rotate, so that the fabric can be pulled out easily. (Remember to turn on the power of the tension controller of the machine, and the Turn on the power – the front take-up shaft works, turn off – the front take-up shaft can be rotated manually).
REHOW provides textile industrial machines to the whole world, helping them improve efficiency and reduce labor cost. ReHow provides various types of textile machinery: raising machine, cloth inspection machine, packing machine, lapping machine, cloth coder, half folding and lapping machine, slitting machine, cross cutting machine, ribbon weaving machine, weaving machine, etc. If you are interested in us, please contact us now!
