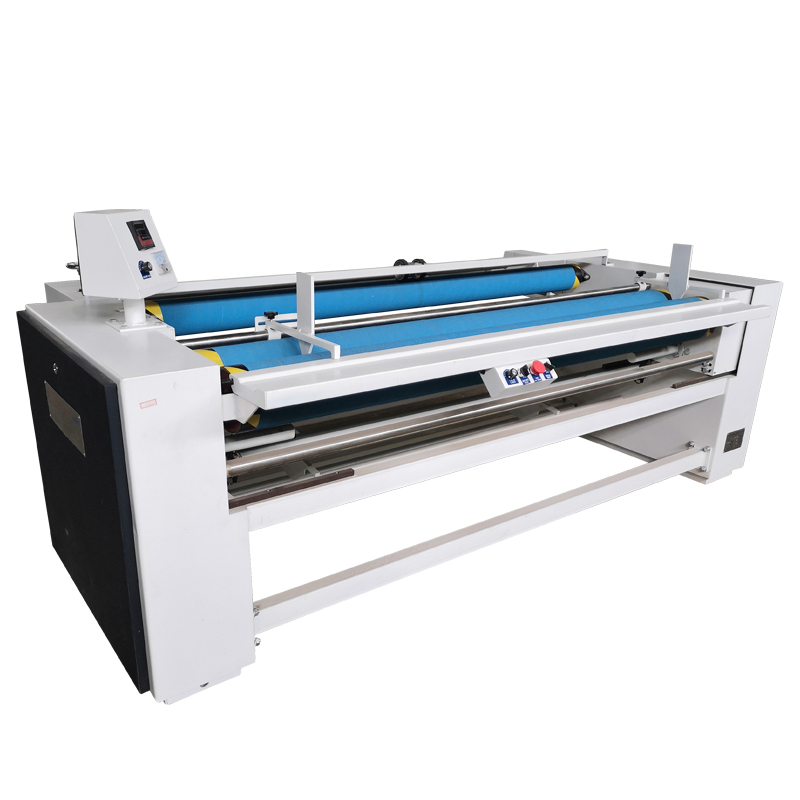

The fabric rolling machine is used for the RSE warp knitting machine to realize the continuous winding of the spandex cloth. Through the frequency conversion control, it realizes the synchronous operation with the main motor of the warp and weaving machine, and keeps the cloth winding speed constant.
After stable development, we have already had our own product advantages. The newly developed weaving beams, warp beams, and pulp beams have become ideal equipment for textile mills to improve product grades and quality, improve efficiency, increase production and reduce consumption.
Fabric rolling machine is used for various fabrics, non-woven fabrics, foam cotton, leather, paper, reflective materials, acetate cloth, reinforcing tape, conductive cloth and other materials, and repeats before cutting and tying strips of various fabrics. Rolling, which can be rolled into straight or 45-degree twill fabrics, photoelectric side-to-side, can effectively align thick and thin materials with automatic code control, and can set the length of the roll.
The fabric rolling machine can be used with any type of loom, with reliable frequency conversion control mode, edge alignment accuracy ≤ 5mm, maximum winding diameter Φ500mm, precision helical gear reducer transmission, suitable for winding ordinary fabrics, such as towels , denim, etc., and can also be equipped with cloth inspection racks according to user requirements
Main specifications and technical characteristics of cloth rolling machine:
1. ASGA804 cloth rolling machine has 180, 220, 240 and other types, corresponding to the maximum fabric width: 1800mm, 2200mm, 2400mm, 3000mm, 3600mm.
2. Power supply: AC380V, three-phase four-wire, frequency 50Hz.
3. Motor power: main motor 1.1kw, trimming motor 0.25kw.
4. Maximum package diameter: φ600mm.
5. Cloth inspection speed: 5-75m/min.
7. The maximum winding edge error: 10mm.
8. The machine is driven by a chain, and the variable frequency speed regulator winds the geared motor with stepless speed regulation.
9. The winding part has an electric trim adjuster, which uses a screw to drive the whole winding part to move left and right.
