1 Overview

REHOW hot cutting and slitting machine is suitable for cutting chemical fiber fabrics, silk, geotextiles and plastic braids and other materials; in terms of working principle, it adopts the automatic temperature control and heating method of the cutter, and can seal the cutting edge and keep it from falling apart automatically while cutting. Rewinding; the eager slitting machine adopts frequency conversion stepless speed regulation control, and the cutting process is more stable and uniform; the appropriate cutting speed can be adjusted according to different products; the automatic edge-aligning system is adopted, the cutting process is smooth and smooth, and the cutting edge is more neat, with a large Reduce the loss of side materials; the newly added function of automatic feeding and retracting of the eager cutting slitting machine, automatic shutdown after cutting the cloth, etc., improve the operability; the cutting knife is made of alloy through special processing, and the service life is greatly improved. improve. Eager cutting machine products are widely used in clothing, packaging, fabrics, accessories, home textiles, filters and other industries.

2. Parameters

Product Name: Eager Slitting Machine (Fabric Trimming Machine)
Brand: REHOW Machine

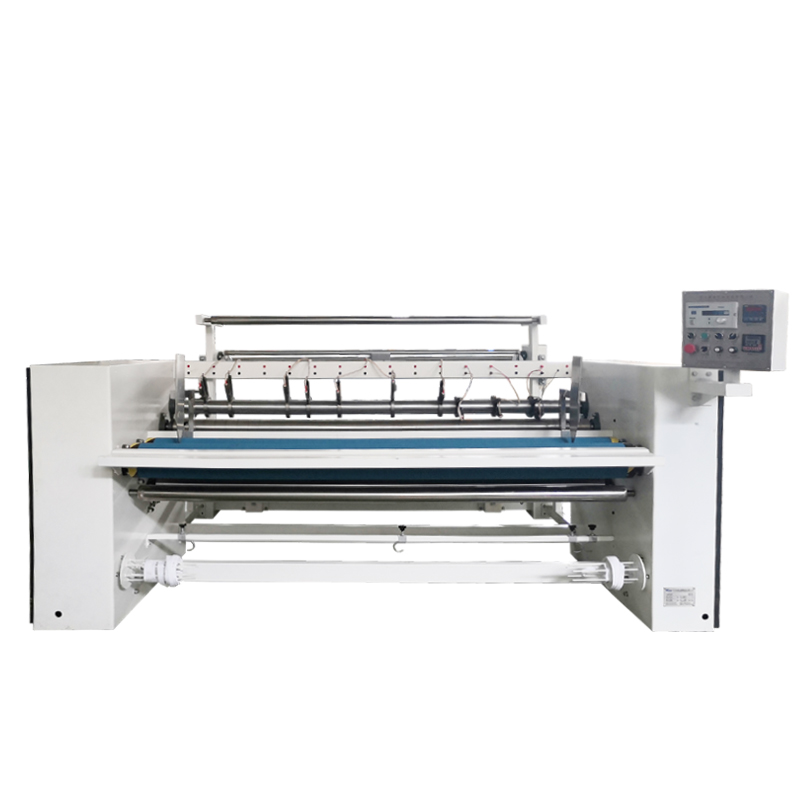

主图_419
Frequency: 10kW
Voltage: 380V
Width: customized
Appearance size: 2800*1100*1700MM
Weight: 1200KG
Efficiency: 5-20M/min
3. Features
1. Adopt frequency conversion control system, stable and reliable;
2. The mechanical structure is strong, and the stability of high-speed operation is high, which effectively improves the durability of the machine and its service life;
3. Fast speed and high production capacity;
4. The cut fabric is flat and precise;
5. The feeding process is uniform, which improves the smoothness and cleanliness of the incision, and is more energy-saving;
6. The machine models are wide and diverse, and can be customized according to the needs;
7. The oblique cutting angle can be adjusted as needed.
8. It adopts high-precision automatic tracking and rectifying system and constant tension control tracking system to accurately control edge inspection, centering, alignment and constant tension, with high sensitivity (minimum 0.01~0.05), good quality and effect;
9. Strong energy saving, adopting electronic temperature control design directly on the slitting cutter, without any heat conduction intermediary, greatly reducing energy loss, thereby improving energy saving. At the same time, electronic temperature control is used to process fabrics of different types and thicknesses, thereby expanding the range of types and types of fabrics to be processed;
10. The width of fabric slitting can be adjusted steplessly (10mm to 1600mm);
11. There is an automatic inspection and adjustment system for fabric expansion force, which can adjust the tension of various fabrics accordingly, so that the effect of the strips after striping is good;
12. It adopts full electronic program control, high degree of automation, convenient operation, safe use, stable and reliable work, and long service life;
13. There is a static elimination device system.
4. Operation process description
●Row Knife
According to the slitting width, it is necessary to arrange the knives.
1. Press the knife advance and retreat button on the control panel to press down the hot knife and fit it with the roller shaft.
2. Open the mechanical door cover on the right, and adjust the pressure screw of the hot cutter so that the blade just touches the roller shaft.
3. Stick the tape measure on the roller shaft and place it above the hot cutter.
4. Starting from the first hot cutter on the left side of the fuselage, loosen the fastening screw of the knife holder, align the blade with the scale on the ruler (starting from 0 or an integer), and then tighten it. Schematic diagram of the hot knife structure (see next page).
● Feeding
1. Loosen the fixing screw on the right side of the feeding shaft, and take out the tight cloth shaft sleeve.
2. After the bearing is pushed out to the left, string the rolled cloth.
3. After inserting the tight cloth bushing, put it back to its original position.
● cloth
1. According to the working path diagram of the hot cutting machine, pull the fabric upwards until it reaches one of the receiving shafts.
2. Turn on the side-to-edge switch on the control panel, so that the electric eye is aligned with the edge of the cloth.
● Sleeve paper circle
1. Remove the fabric receiving shaft and place it on the fixed frame of the paper discharge circle of the workbench.
2. Prepare the paper circle for rolling the cloth strips.
3. Referring to the tape measure, stagger the receiving paper rings according to the order of the knife row size and insert them into the two receiving shafts respectively.
4. After stringing the latex strip into the groove of the cloth receiving shaft, push it upward from the shallow end of the groove to tighten the paper circle.
● Heating
Press the heating on button to start heating, and the thermostat is powered on to set the temperature. Control panel instructions.
●Temperature speed setting
1 According to different fabrics, set the temperature, generally between 300°C and 380°C.
2. When the temperatures displayed by the three thermostats all reach the set data and are relatively stable, it is advisable to set the trial cutting speed frequency to [5.00].
● trial cut
Press the switch of the forward and backward knife, and try to cut the cloth by hand. When the cut length can touch the fabric receiving shaft, press the switch of the forward and backward knife to stop.
● Receiving preparation
When the cloth strips cut out can meet the requirements, cut off the uncut fabric at the beginning, tighten the front end of the cloth strips, stagger up and down in order, and stick them to the receiving paper circle with adhesive tape. Tie the edge of the selvage to the edge material shaft ⑤, and coil it well.
● start cutting
1. Press the switch of the forward and backward knife, and close the knife to cut the material.
2. During the operation process, pay attention to whether the cut cloth can meet the requirements; whether the tightness of the receiving material is moderate; whether the winding is neat.
3. After the material cutting operation is stable, the speed can be adjusted and the temperature should be adjusted appropriately.
● Shutdown for unloading
1. When there are about 2 meters left in the fabric, turn off the potentiometer switch on the speed control frequency, and press the forward and backward knife switch to stop.
2. Cut off the uncut fabric at the end, and stick the cloth strip to the cloth roll with adhesive tape to prevent it from falling apart.
3. Remove the fabric receiving shaft, place it on the unloading rack of the workbench, turn it downward with a little force to loosen the rolled cloth strip, and pull out the latex strip.
4. Push out the cloth roll, fold it and pack it.
● Pay attention to cooling
When the machine works for a long time, in order to prevent the rollers in contact with the cutter from overheating, the cooling water pump should be turned on to keep the rollers at a low temperature when cutting materials. Pay attention to adding water to the water tank; the motor is reversed (please refer to the mark on the motor body), if it is found to be reversed, any two of the three 380V incoming lines can be reversed.
