The s600 packaging machine is widely used in the production and packaging of products. We will inevitably encounter such or such problems during use. For some minor problems, we do not need to contact the manufacturer. We usually collect more causes of failure, and then 1 time to solve the problem, without delaying production, and reducing a lot of trouble. What is the reason why the S600 packaging machine does not unload the material? The solution to this situation is to open the hopper more to observe the material level. If the material is found to be insufficient, add the material in time. However, this method has low power because the hopper of the s600 packaging machine has a A certain height, frequent feeding also increases the workload of the personnel, the best solution is to use the feeding machine, so that the materials can be directly added to the hopper of the feeding machine, which not only greatly improves the production efficiency, but also reduces The work load of the personnel has been reduced.
s600 cloth packing machine
Below we make the following summary of the reasons why the s600 packaging machine does not unload:
1) Check whether there is no material in the storage hopper, if there is no material in the cloth packaging machine, add it in time;
2) Check whether the material hoist or metering device of the vertical automatic packaging machine is normally energized and whether the relevant switch is turned on;
3) Check whether the air pressure of the equipment is faulty, and whether the feeding button on the touch screen is open;
4) Check whether the feeding port is blocked,
5) The vertical automatic packaging machine checks whether the circuit of the cutting equipment is faulty.
Application of rehows600 packaging machine:
This machine adopts the latest technology from South Korea. It is suitable for packaging of various fabrics and can be automatically adjusted according to the size of the package. The method of double-sided simultaneous packaging not only saves time but also improves efficiency. Strong packaging can also be carried out without using hot air shrinkage, further reducing energy consumption; ordinary film can be used for packaging to reduce packaging costs.

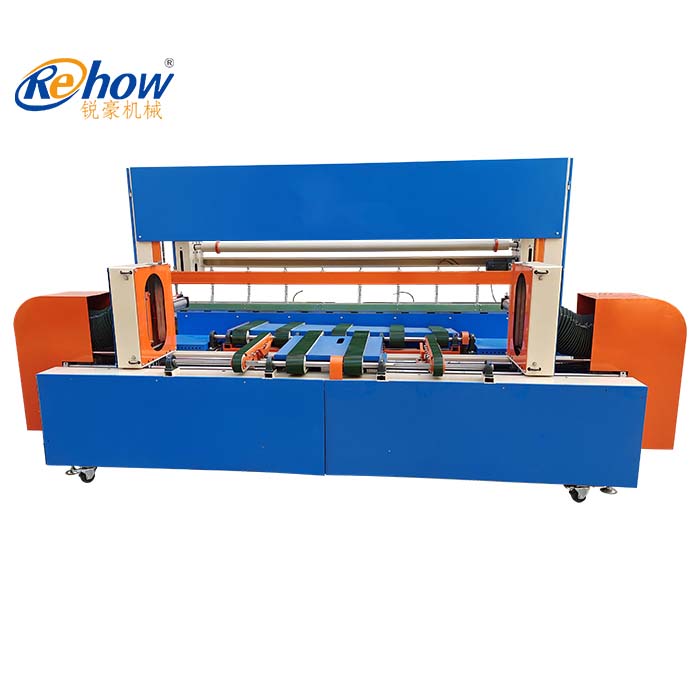

Full-automatic PE Film Cloth Packing Machine specific structure and configuration
1. Entrance conveyor belt
Dimensions L5000MM * D500MM * H700MM, using Taiwan Chenggang geared motor, automatic induction start and stop, automatic standby without packaging, power saving
2. Host
A. Cloth diameter and length automatic detection department
The cylinder adopts Korean ISTC brand, and the sensor adopts Korean AUTONICS brand, which is stable and durable.
B. Film supply department
The sensor is used to sense the film supply, which can automatically adjust the film supply according to the fabric size detected in the previous stage. The rubber roller is covered with rubber, which is not easy to slip and durable.
C. Body Conveyor Department
The 4T PVC belt structure is used to keep the fabric always fixed in the middle of the equipment.
D. Push out the device
The double cylinder pushing device is used to move the fabric to the middle sealing position.
E. Intermediate conveyor belt device
The top of the Korean imported cover is connected to form four sets of parallel transmission platforms, and the position can be adjusted up and down, so that the fabric seam is always in the center.
F. Zhongfeng Department
The knife holder is imported from Korea with high temperature resistant Teflon coated knife holder, and the seams are made of thin film, which will not stick to the knife edge, making the seams more neat and beautiful.
G. Central vertical platform
Both side seals can be adjusted up and down automatically, so that the two side cuts are always kept in the center of the fabric end face
H. Seals on both sides
The double-sided sealing operation of the fabric adopts the Teflon knife holder imported from Korea, and the exclusive cutting and pre-stretching device is used to make the packed fabric more tightly
1. Hot air heating department
It adopts Korean imported ceramic heater and fan-shaped circuit structure, double-sided incision blowing time can be adjusted for heat treatment
J. Hot air flap finishing department
The fabric heated by the hot air is moved to this position for double-side flanging finishing, and the cuts after finishing are neat and beautiful
K. Elevator take-out part
The wrapped fabric will be taken out from the packing machine
Technical Parameters:
Package Size: Width: 1100 MM – 2100 MM, Diameter: Ø 100 MM – Ø 550 MM, Weight: 5 KG – 800 KG
Packing capacity: 3-4 rolls/min
Packing Material: L.D.P.E FILM Thickness: 0.03 MM – 0.10 MM
Conditions of use: Voltage: AC380V, three-phase 50HZ, pressure: 5-8KGF
s600 Full-automatic PE Film Cloth Packing Machine Main Parts and Origin
1. Cylinder: Korean ISTC brand
2. Electrical components: Korean LC LS and Korean AUTONICS
3. Motor: Taiwan Chenggang Motor
4. Main cutter and side cutters: high-strength aluminum alloy knife holder, imported from Korea
5. Frame and machined parts: domestic processing
6. Equipment surface treatment: high temperature spraying, chrome plating, galvanizing, blackening, etc.
Post time: May-04-2023
