Automatic Side Inspection Cloth Rolling Machine

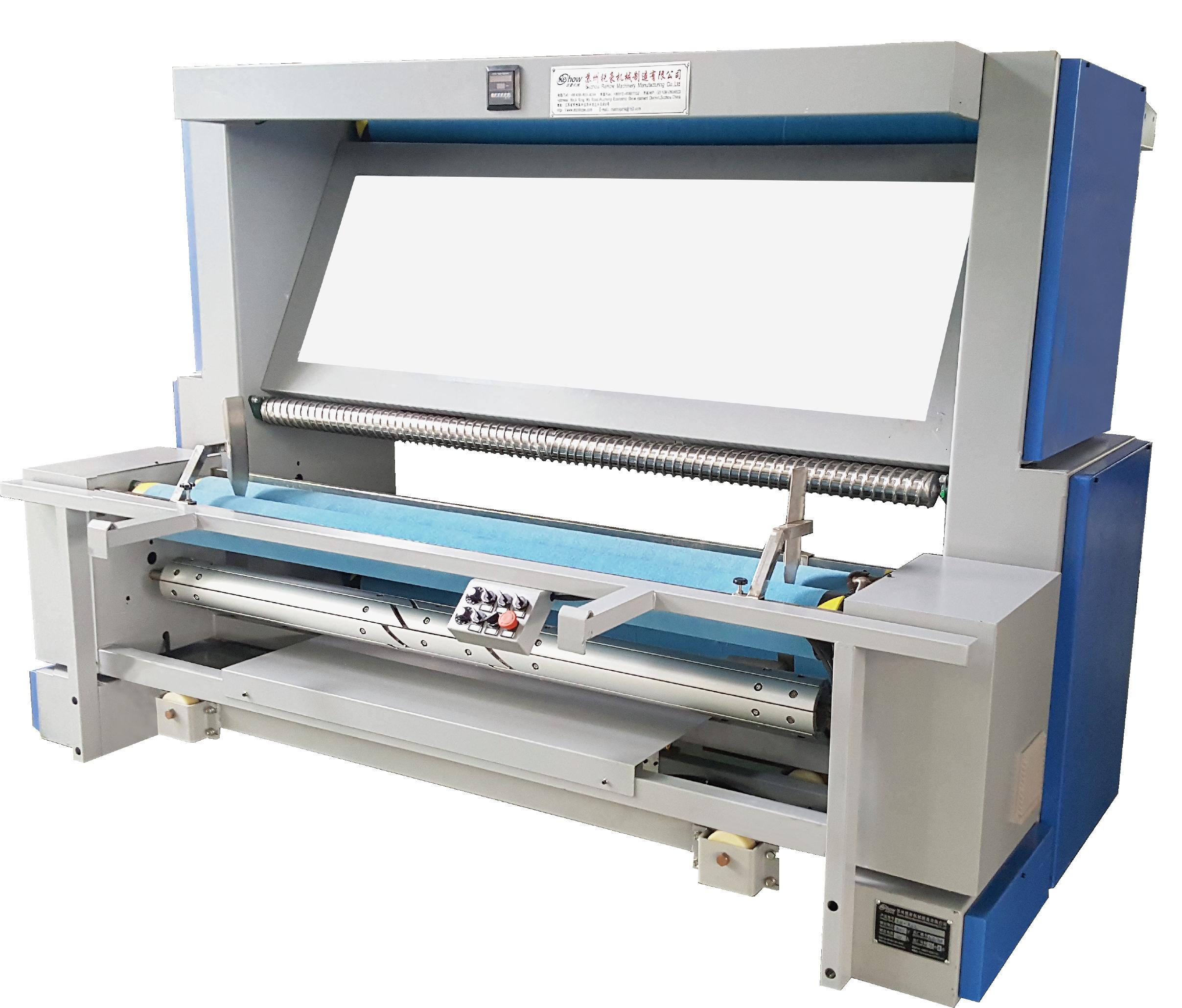

The automatic side inspection cloth rolling machine is a set of necessary special equipment for inspecting cotton, wool, linen, silk, chemical fiber and other large-format, double-width and single-width cloth before production in the garment industry. The automatic side-to-side inspection cloth roll machine can replace manual work, automatically inspect and grade the cloth, cut it, and label the defects.图片1

The automatic side-to-side cloth inspection machine relies on the reflection of the light source and the effect of light guide to inspect the cloth to a certain extent. The normal cloth inspection speed can reach 120 m/min. It operates by the terminal control system. The detected defects are in the The report can be displayed on the screen, which is fast and concise.

The technical characteristics of the automatic edge inspection cloth winding machine

1. This machine uses hydraulic side-to-side equipment.

2. Adjust the speed by frequency conversion.

3. The inspection and coiling table is located in front of the inspectors, so the operation is simpler and the use is more comfortable.

4. The upright box structure is adopted, which is more beautiful and safer. Adapt to the process requirements of various fabrics!

The equipment of automatic edge inspection cloth winding machine

Good electrical equipment allows you to use it comfortably. Worry-free work obstruction caused by minor faults. Adopt Taiwan hydraulic system, high-precision infrared photoelectric edge alignment equipment, more neat edge alignment, more stable operation, and high output power.

The power system of the automatic side inspection cloth winding machine

High efficiency and energy saving, environmental protection and stability. Double frequency conversion control to achieve no tension, no shrinkage and no weft arc in fabric winding. Continuously variable speed scheduling, do whatever you want.

The processing technology of high-quality raw materials is selected (our company has a special processing center), the vibration rate is about 15 wires (the roller of general materials is more than 50 wires), and the high-equipped winding system makes the fabric coiling smoother and better. . To satisfy your customers.

Parameters of automatic edge inspection cloth winding machine

The motor power of the automatic side-to-side inspection cloth winding machine: the transmission motor is 0.75KW. Edge motor 0.4KW.

Cloth winding speed of automatic side inspection cloth winding machine: 0-80M stepless speed change.

The coiling diameter of the automatic side-to-side inspection cloth winding machine: the maximum coiling diameter of the coiling roller 4.5” is 450MM
