Beam/warp beam
Short Description:

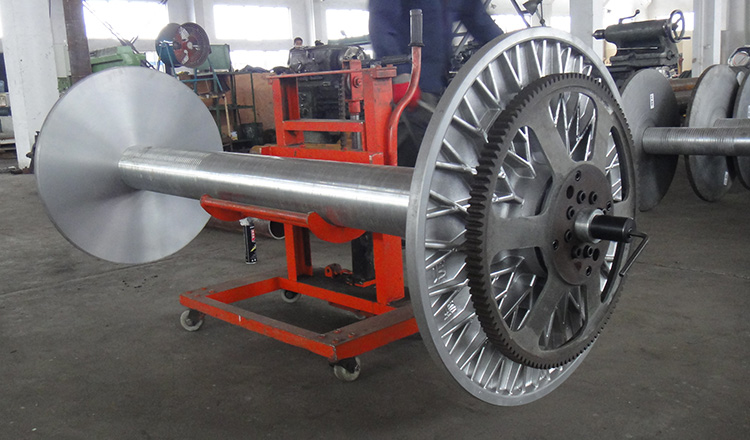

The weaving beam/warping beam is mainly composed of shaft core, disk, fixed ring, shaft head, gear and other components. The main standards are:
1. The overall interchangeability is strong: the same batch of weaving shafts produced, all parts can be interchanged, which is convenient for users to assemble, repair and accessories
2. Accuracy requirements after assembly: the runout of the shaft plate to the shaft core is <0.8mm, and the vertical runout of the disc is less than 0.5/1000
Main model:
Main width: 170, 190, 210, 230, 250, 280, 300, 320, 340, etc.
Aluminum disc specifications: Φ800, Φ1000, Φ1100, Φ1250, Φ1400, special specifications can be customized by mold opening
The weaving beam/warping beam is mainly composed of shaft core, disk, fixed ring, shaft head, gear and other components. The main standards are:
1. The overall interchangeability is strong: the same batch of weaving shafts produced, all parts can be interchanged, which is convenient for users to assemble, repair and accessories
2. Accuracy requirements after assembly: the runout of the shaft plate to the shaft core is <0.8mm, and the vertical runout of the disc is less than 0.5/1000
Selection of materials for weaving beams/warping beams
1. Aluminum disc: ZL104 high-strength aluminum alloy
2. Shaft core: seamless steel pipe Φ180, steel grade 20#, all of which are domestic famous and high-quality products (Shagang, Baosteel), with high tensile strength and high elongation; equipped with 45# forged boring head
3. Gear: Nodular cast iron QT500-7, good wear resistance
4. Fixed ring: nodular cast iron QT500-7, high hardness and high strength
The main production process of weaving beam/warping beam
1. Aluminum disc: metal steel mold casting, one-piece molding; processed by precision CNC machine tools; aging treatment
Good wear resistance after surface anodizing treatment, will not fade
2. Shaft core: precision lathe processing, and galvanized passivation treatment
3. Gear: processed by precision milling machine, matched with the shaft body, and treated with anti-rust paint
4. Fixed ring: precision CNC lathe processing, good fit with shaft core thread
With the continuous improvement of the functional requirements of textile finishing machines in various countries, the structures and functions of our fabric inspection machines, fabric slitting machines, and fabric folding machines are constantly being adjusted.
